  • 1/2" DRIVE SOCKET 24 MM - 12 POINT


product_img_big

ITEM NO : 3343398

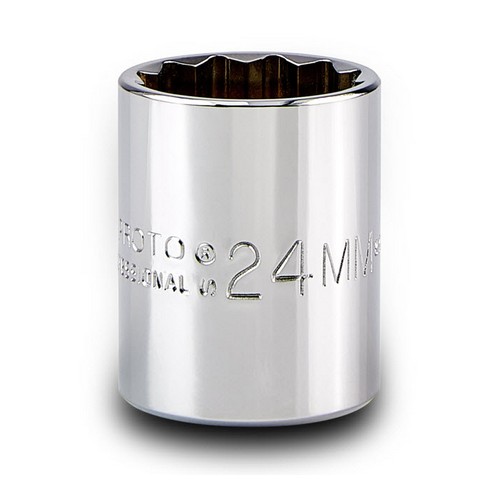

1/2" DRIVE SOCKET 24 MM - 12 POINT

Proto

PART NO : J5424M


price : 591.00 Baht / EA

( Price excluding VAT )


**Special clearance prices! Limited stock available.**


FG1136499

- Proto 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

SIZE [MM]: 24
NUT END OUTSIDE DIAMETER [IN]: 1-1/4
DRIVE END OUTSIDE DIAMETER [IN]: 1-1/4
NUT DEPTH [IN]: 53/64
BOLT CLEARANCE DEPTH [IN]: 59/64
OVERALL LENGTH [IN]: 1-17/32
WEIGHT [LBS]: 0.28
DRIVE SIZE [IN]: 1/2
POINT SIZE: 12
FINISH: Full Polish
LENGTH TYPE: Standard
UNIT OF MEASURE: Metric
SPECIFICATION ASME: ASME B107.110-2012
SPECIFICATION AS: SAE AS4984A
