ITEM NO : 3330149

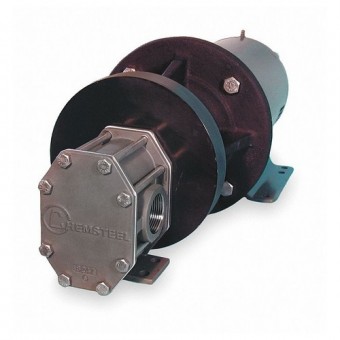

Rotary Gear Pump 5 HP 3 Phase

OBERDORFER CHEMSTEEL

PART NO : S93516CAC6-X97

Rotary Gear Pump Close Coupled 5 hp HP 3 Phase Voltage 230/460 13.2/6.6 Amps Motor Frame 182TC Motor Enclosure TEFC Port Size (In.) 1 1/2 in Suction Lift (Ft.) 15 ft GPM Max 22.5 gpm Max Pressure (PSI) 110 psi Relief Valve - Seal PTFE Type 9T Mechanical with Stainless Steel Body Material 316 Stainless Steel Shaft Material 316 Stainless Steel Temp Range - Min Temp (F) -50 Degrees F Max Temp (F) 450 Degrees F Gear Material 316 SS/Alloy 20 Helical Max RPM 1 725 RPM

STOCK : available
UOM : EA lead time : 30 days weight : 65.31 kg

add to cart
