ITEM NO : 3329567

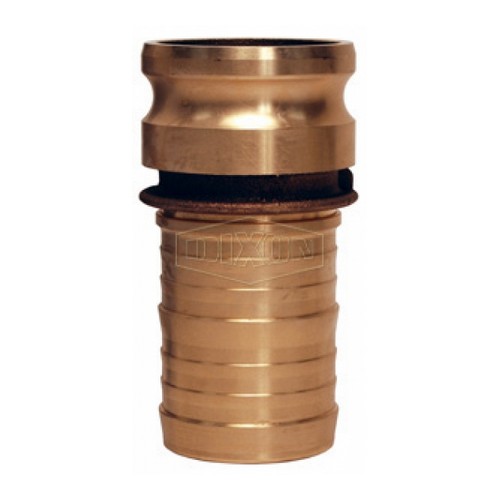

Cam & Groove Type E Adapter x Hose Shank, 1", Brass

DIXON

PART NO : 100-E-BR

**Special clearance prices! Limited stock available.**


FG1000101
Suitable for use with King Crimp sleeves and ferrules
Maximum Operating Pressure: 250 PSI
Weight: 0.72 lb
Size: 1"
Material: Brass

- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
- Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.

STOCK : available (1)
UOM : EA lead time : 3 days weight : 0.50 kg
