ITEM NO : 3329013

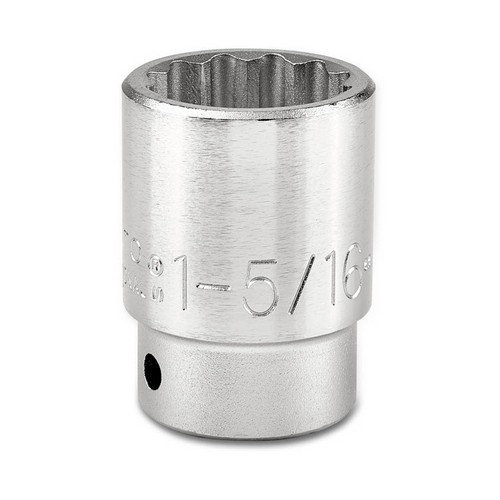

1-5/16" Steel Socket with 3/4" Drive Size and Satin Finish

Proto

PART NO : J5542

**Special clearance prices! Limited stock available.**

FG1015917
- Proto? 12 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
- The TorquePlus? design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
- The TorquePlus? configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
- The TorquePlus? internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.
- Ball detent design.
- Made of heat-treated alloy steel.
- Side locking hole.

SIZE [IN]: 1-5/16
NUT END OUTSIDE DIAMETER [IN]: 1-7/8
DRIVE END OUTSIDE DIAMETER [IN]: 1-19/32
NUT DEPTH [IN]: 27/32
BOLT CLEARANCE DEPTH [IN]: 1-5/32
OVERALL LENGTH [IN]: 2-9/32
WEIGHT [LBS]: 0.89
DRIVE SIZE [IN]: 3/4
POINT SIZE: 12
FINISH: Satin
LENGTH TYPE: Standard
UNIT OF MEASURE: Fractional
SPECIFICATION ASME: ASME B107.110-2012
SPECIFICATION AS: SAE AS4984A

STOCK : available (2)
UOM : EA lead time : 3 days weight : 0.50 kg
