ITEM NO : 3276170

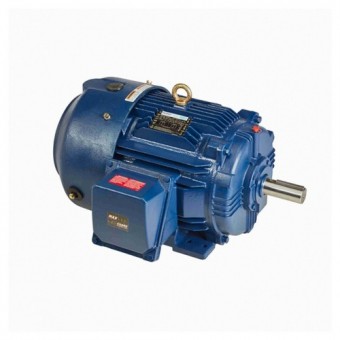

General Purpose Motor 2 HP 1175 RPM 184T

MARATHON MOTORS

PART NO : 184TTTCD6582

Severe Duty Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 175 No of Speeds 1 Voltage 230/460V AC Full Load Amps 6.0/3.0 184T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Motor Thermal Protection Not Applicable Duty Cycle Continuous Ins. Class H NEMA Design B Motor Enclosure Design Totally Enclosed Nonventilated Motor Shaft Rotation CW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal

STOCK : available
UOM : EA lead time : 30 days weight : 56.24 kg
