ITEM NO : 2870566

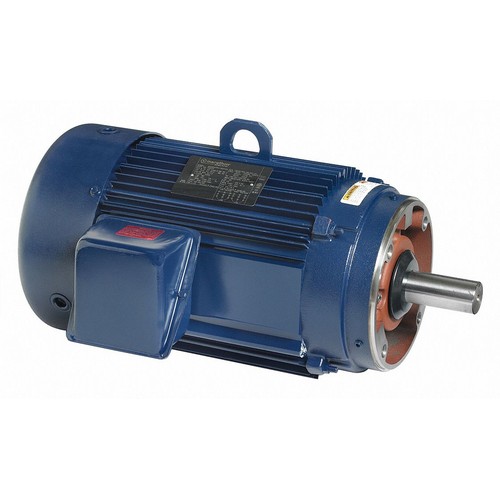

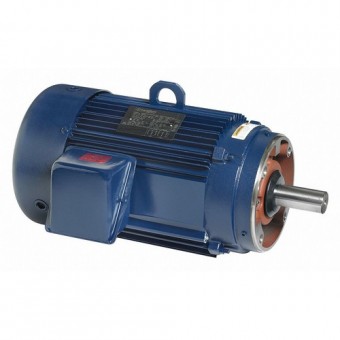

GP Motor 15 HP 1 775 RPM 230/460V 254TC

MARATHON MOTORS

PART NO : 254TTFL16039

General Purpose Motor 3-Phase Totally Enclosed Fan-Cooled 15 HP Nameplate RPM 1775 254TC Frame Voltage 230/460 60/50 Hz 3 Phase 37.5/18.8 Full Load Amps No of Speeds 1 Motor Mounting Type Face Motor Mounting Position Horizontal Motor Thermal Protection None Ins. Class F 1.15 Motor Service Factor Ball Motor Bearings Motor Frame Material Cast Aluminum Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Overall Length 24 In. Motor Shaft Design Keyed

STOCK : available
UOM : EA lead time : 30 days weight : 118.37 kg
