ITEM NO : 2798503

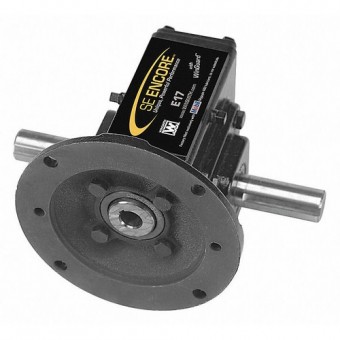

Speed Reducer C-Face 140TC 50 1

WINSMITH

PART NO : E35MWNS 50:1 140TC

Speed Reducer C-Face Right Angle Shaft Orientation Washdown Duty 1725 Input RPM 35 Nominal Output RPM Worm Center Distance 3.50 In. Bore Dia 1-3/4 In. 140TC Frame Overhung Load 2130 lb. 50 1 Nominal Ratio Max Input HP 2 Max Output Torque 3076 in.-lb. Number of Stages 1 Reversible Rotation Universal Mounting Worm Gear Type Cast Iron Housing Material Double Output Output Shaft Dia 1-3/4 In. Output Shaft Height 4 In.

STOCK : available
UOM : EA lead time : 30 days weight : 37.78 kg
