ITEM NO : 2740623

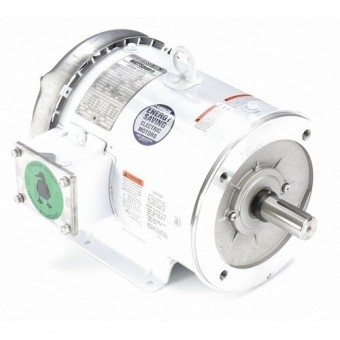

Brake Motor 3 HP 1760 182TC 230/460V

LEESON

PART NO : 132198

Washdown Motor 3-Phase 3 HP 1760 Nameplate RPM Voltage 230/460 Phase 3 182TC Frame Totally Enclosed Fan-Cooled Full Load Amps 7.8/3.9 60 Hz Motor Thermal Protection None F Ins. Class Motor Service Factor 1.15 Ball Motor Bearings Max Ambient Temp 40 Degrees C CWSE Motor Shaft Rotation Shaft Dia 1-1/8 In. Shaft Length 2-5/8 In. Length Less Shaft 11-13/16 In. Motor Frame Material Rolled Steel Nominal Efficiency 89.5 Percent RPM Range 1701-1800

STOCK : available
UOM : EA lead time : 30 days weight : 35.83 kg
