ITEM NO : 2272158

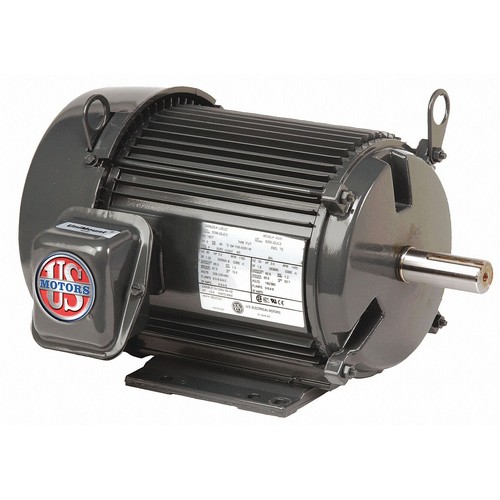

GP Motor 10 HP 3 600 RPM 208-230/460V

US MOTORS

PART NO : U10P1D

General Purpose Motor 3-Phase Totally Enclosed Fan-Cooled 10 HP Nameplate RPM 3600 215T Frame Voltage 208-230/460 60/50 Hz 3 Phase 26.4-23.5/11.8 Full Load Amps No of Speeds 1 Motor Mounting Type Rigid Base Motor Mounting Position Horizontal or Vertical Shaft Down Motor Thermal Protection None Ins. Class F 1.25 Motor Service Factor Ball Motor Bearings Motor Frame Material Cast Aluminum Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Overall Length 20-4/8 In.

STOCK : available
UOM : EA lead time : 30 days weight : 54.42 kg
