ITEM NO : 2195903

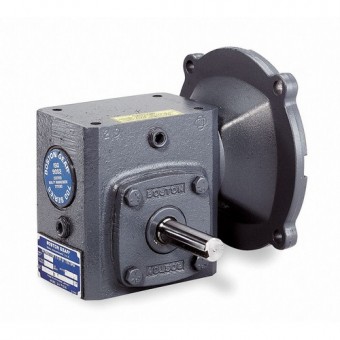

Speed Reducer C-Face 140TC/180C 25 1

BOSTON GEAR

PART NO : F732-25E-B7-G

Speed Reducer C-Face Right Angle Shaft Orientation Standard Duty 1750 Input RPM 70 Nominal Output RPM Worm Center Distance 3.25 In. Bore Dia 7/8 In. 140TC/180C Frame Overhung Load 1300 lb. 25 1 Nominal Ratio Max Input HP 2 Max Output Torque 1440 in.-lb. Number of Stages 1 Forward/Reversible Rotation Optional Base Any Position Mounting Tapered Roller Bearings Hardened Steel Pinion Material Worm Gear Type Cast Iron Housing Material Single Output Output Shaft Dia 1-3/8 In.

STOCK : available
UOM : EA lead time : 30 days weight : 33.11 kg
