ITEM NO : 2192009

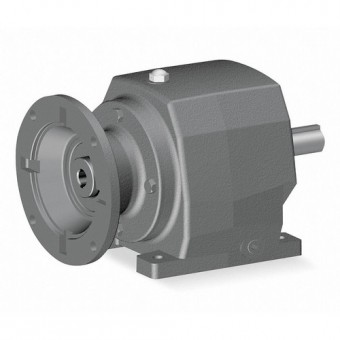

Speed Reducer C-Face 140TC/180C 22 1

BOSTON GEAR

PART NO : F842B-22K-B7-M1

Speed Reducer C-Face Parallel/Inline Shaft Orientation Standard Duty 1750 Input RPM 79 Nominal Output RPM Bore Dia 7/8 In. 140TC/180C Frame Overhung Load 620 lb. 22 1 Nominal Ratio Max Input HP 1.5 Max Output Torque 1158 in.-lb. Number of Stages 1 Forward/Reversible Rotation Optional Base Any Position Mounting Roller Bearings Hardened Steel Pinion Material Helical Gear Type Cast Iron Housing Material Single Output Output Shaft Dia 1 In. Output Shaft Height 1-31/32 In.

STOCK : available
UOM : EA lead time : 30 days weight : 15.96 kg
