ITEM NO : 2087360

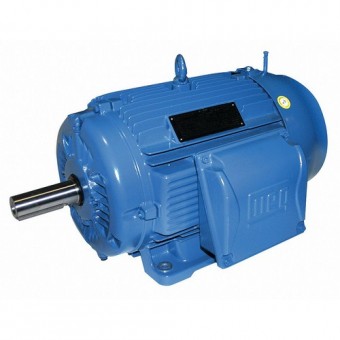

Metric Motor 10 HP 1 180 RPM 460V 160M

WEG

PART NO : 00712ET3Y160M-W22

Metric Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 10 HP 7.50 kW Nameplate RPM 1180 Frame 160M Voltage 460 60/50 Hz 3 Phase Full Load Amps 13.1 Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.25 Ball Motor Bearings Motor Frame Material Cast Iron Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Nominal Efficiency 91.0 Percent Continuous Duty 1101-1200 UL (E104590) CSA (LR38324) CE

STOCK : available
UOM : EA lead time : 30 days weight : 131.97 kg
