ITEM NO : 3235400

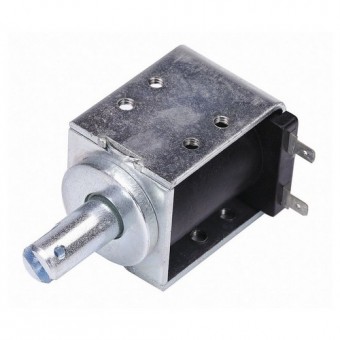

Solenoid

LEDEX

PART NO : B4HD-502-M-36

Solenoid AC Box Frame Pull Type Stroke Range 0 to 1 in Pull Force Range 48.0 to 288.0 oz Width 1 9/20 in Depth 1 63/100 in Length 2 9/50 in Coil Volts 240 V AC Seated Amps 0.58 A Coil Resistance 78 ohms Coil Insulation 105C max Class A Terminals 3/16 in QC Amps @ Max Stroke 2.119 A Duty Cycle Intermittent Max On Time 180 sec Material of Construction Steel Mounting Holes 8x #8-32 UNC 2 3/25 in From Mounting Holes to Plunger Hole Standards RoHS

STOCK : available
UOM : EA lead time : 30 days weight : 0.36 kg
