ITEM NO : 3235399

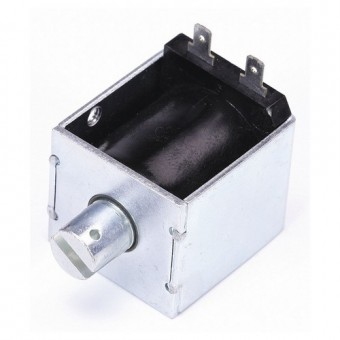

Solenoid

LEDEX

PART NO : B22-502-M-36

Solenoid AC Box Frame Pull Type Stroke Range 0 to 1 in Pull Force Range 32.0 to 192.0 oz Width 1 31/100 in Depth 1 47/100 in Length 1 61/100 in Coil Volts 240 V AC Seated Amps 0.357 A Coil Resistance 163 ohms Coil Insulation 105C max Class A Terminals 3/16 in QC Amps @ Max Stroke 1.283 A Duty Cycle Intermittent Max On Time 180 sec Material of Construction Steel Mounting Holes 2x #10-32 UNF 169/200 in From Mounting Holes to Plunger Hole Standards RoHS

STOCK : available
UOM : EA lead time : 30 days weight : 0.24 kg

add to cart
