ITEM NO : 3060698

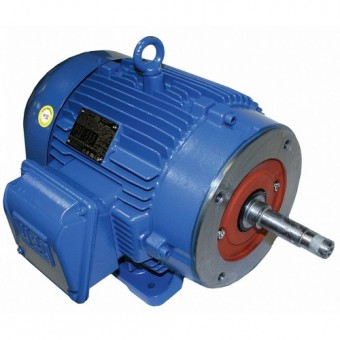

Motor 1 HP 1 760 rpm 143JM 208-230/460V

WEG

PART NO : 00118ET3E143JM-W22

Close-Coupled Pump Motor 3-Phase 1 HP Nameplate RPM 1765 Voltage 208-230/460 3 Phase Frame 143JM Totally Enclosed Fan-Cooled Full Load Amps 3.7-2.8/1.4 60 Hz Face/Base Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.25 Ball Motor Bearings Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Overall Length 14-5/16 In. Shaft Dia 7/8 In. Shaft Length 4-1/8 In. Motor Frame Material Cast Iron

STOCK : available
UOM : EA lead time : 30 days weight : 22.09 kg

add to cart

• SKU:3060698
