ITEM NO : 3060685

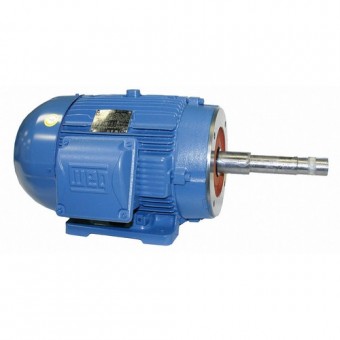

Motor 15 HP 3 530 rpm 208-230/460V

WEG

PART NO : 01536ET3E254JP-W22

Close-Coupled Pump Motor 3-Phase 15 HP Nameplate RPM 3535 Voltage 208-230/460 3 Phase Frame 254JP Totally Enclosed Fan-Cooled Full Load Amps 37.6-34.4/17.2 60 Hz Face/Base Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.25 Ball Motor Bearings Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Overall Length 26-15/16 In. Shaft Dia 1-1/4 In. Shaft Length 7-7/8 In. Motor Frame Material Cast Iron

STOCK : available
UOM : EA lead time : 30 days weight : 122.45 kg

add to cart
