ITEM NO : 3016689

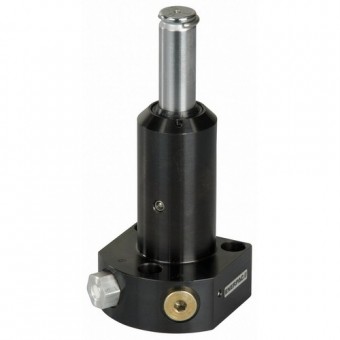

Swing Cylinder Lower Flange 1100 lb.

ENERPAC

PART NO : SLRS51

Swing Clamp Hydraulic Cylinder Swing Body Material Steel Mounting Style Lower Flange Single Acting/Double Acting Single Acting Turns Right Clamping Force 1100 lb. Total Stroke 0.89 In. Effective Area Clamped 0.28 sq. in. Clamping Stroke 0.39 In. Max Pressure 5000 psi Series SLR Swing Angle 90 Degrees Port Size #4 SAE Oil Capacity Clamped 0.25 cu in. Max Oil Flow 25 cu in./min. Pressure Range 500 to 5000 psi Extended Height 5.31 In. Outside Dia 2.13 In.

STOCK : available
UOM : EA lead time : 30 days weight : 1.08 kg
