ITEM NO : 2870526

Motor 15 HP 3 510 rpm 208-230/460V

WEG

PART NO : 01536ET3E215JP-W22

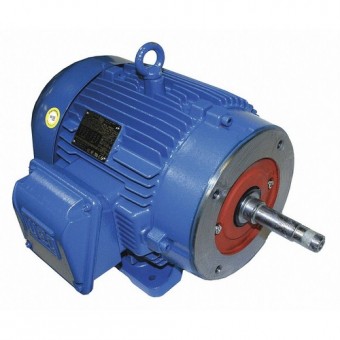

Close-Coupled Pump Motor 3-Phase 15 HP Nameplate RPM 3510 Voltage 208-230/460 3 Phase Frame 213/5JP Totally Enclosed Fan-Cooled Full Load Amps 37.6-34.0/17.0 60/50 Hz Face/Base Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.25 Ball Motor Bearings Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Overall Length 24-5/16 In. Shaft Dia 1-1/4 In. Shaft Length 8-1/8 In. Motor Frame Material Cast Iron Includes Base

STOCK : available
UOM : EA lead time : 30 days weight : 83.90 kg

add to cart
