ITEM NO : 2368011

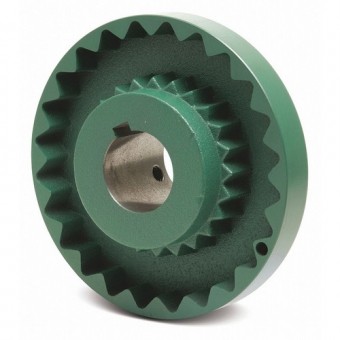

Sleeve Coupling Flange 1-3/4

TB WOOD'S

PART NO : 8S134


price : 6,204.00 Baht / EA

( Price excluding VAT )


Sleeve Coupling Flange Size - Sleeve Couplings 8 Flange Type - Sleeve Couplings S Bore Type - Couplings Fixed Bore Bore Dia 1-3/4 In. Outside Dia 5.450 In. Keyway Size Type 3/8 in x 3/16 In. Length through Bore (In.) 2.09 Max RPM 4500 Width (In.) 2.09 Height (In.) 5.450 Hub Dia (In.) 5.450 Material of Construction Cast Iron Setscrew Location One over the Key and One at 90 Degrees Max Angular Misalignment 1 Degrees For EPDM Neoprene Sleeves 0.25 Degrees For Hytrel Sleeves
