ITEM NO : 3276227

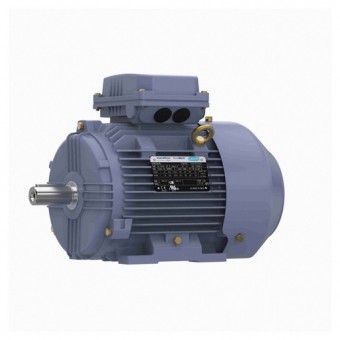

General Purpose Motor 15HP 1775 RPM 160M

MARATHON MOTORS

PART NO : TCA0112AE231GAA009

IE3 Efficiency Motor Three Phase Motor Design 3-Phase 15 HP Nameplate RPM 1 775 No of Speeds 1 Voltage 230/460V AC Full Load Amps 37.5/18.7 160M Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Motor Thermal Protection Not Applicable Duty Cycle Continuous Ins. Class F NEMA Design N Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base

STOCK : available
UOM : EA lead time : 30 days weight : 70.29 kg
