ITEM NO : 3223524

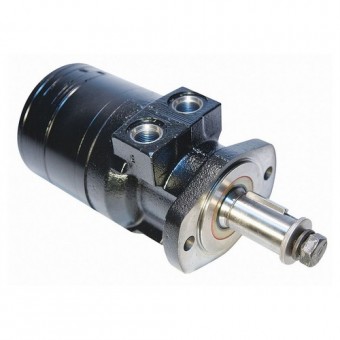

Hydraulic Motor 10.3 cu in./rev.

PARKER

PART NO : TG0170AS030AAAA

Hydraulic Motor 10.3 cu in/rev Displacement Continuous Torque 4 216 in-lb Flange Mount SAE A 2-Bolt 7/8 In.-14 SAE Port Size Shaft Dia 1 1/4 in Min Oil Viscosity 50 SUS Max RPM 554 RPM Pressure Rating 3000 psi Shaft Type Keyed Max Oil Temp 180 Degrees F Shaft Length 2.37 in Length 7.82 in Height 5.03 in Mounting Plate Width 5.25 in

STOCK : available
UOM : EA lead time : 30 days weight : 14.90 kg

add to cart
