ITEM NO : 2292777

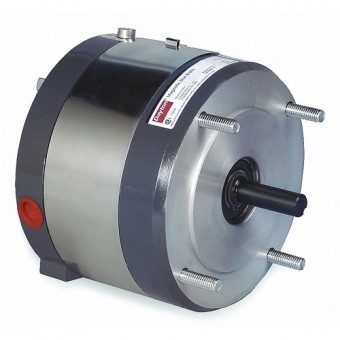

Brake Magnetic Dripproof Torque 10 Ft-Lb

DAYTON

PART NO : 2LYT9

Brake Double C-Face Magnetic Disc Static Torque (Ft.-Lb.) 10 Shaft Dia (In.) 5/8 Max Bore (In.) - Keyseat Size (In.) - Dripproof Enclosure Continuous Duty 208-230/460 Voltage @ 60 Hz 174-190/380 Voltage @ 50 Hz Voltage (DC) - 208-230/460VAC Or 174-190/380VAC Coil Volts Single Phase 3450 Max RPM Max HP @ 1725 RPM 3 Max HP @ 3450 RPM 5 Ambient (C) 40 60/50 Hz .34/.17 Amps Holding 2.43/1.22 Inrush Amps 1.0 Service Factor 56C/140TC NEMA/IEC Frame Power Lead Length (In.) 15

STOCK : available
UOM : EA lead time : 30 days weight : 5.51 kg
