ITEM NO : 2197236

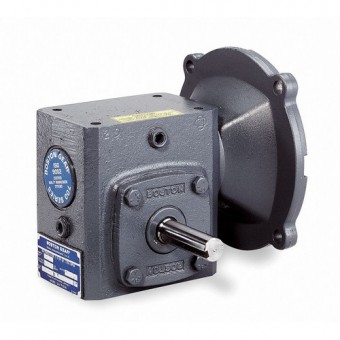

Speed Reducer C-Face 140TC/180C 10 1

BOSTON GEAR

PART NO : F724-10-B7-G

Speed Reducer C-Face Right Angle Shaft Orientation Standard Duty 1750 Input RPM 175 Nominal Output RPM Worm Center Distance 2.38 In. Bore Dia 7/8 In. 140TC/180C Frame Overhung Load 900 lb. 10 1 Nominal Ratio Max Input HP 2 Max Output Torque 640 in.-lb. Number of Stages 1 Forward/Reversible Rotation Optional Base Any Position Mounting Tapered Roller Bearings Hardened Steel Pinion Material Worm Gear Type Cast Iron Housing Material Single Output Output Shaft Dia 1-1/8 In.

STOCK : available
UOM : EA lead time : 30 days weight : 15.10 kg
