ITEM NO : 3016115

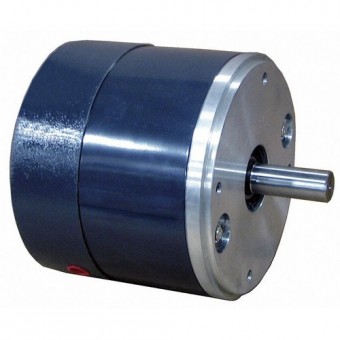

Brake Magnetic Torque 15 Ft-Lb Dripproof

DAYTON

PART NO : 5URA8

Brake Double C-Face Magnetic Disc Static Torque (Ft.-Lb.) 15 Shaft Dia (In.) 1 1/8 Max Bore (In.) 1-1/8 Keyseat Size (In.) 1/4 x 1/8 Dripproof Enclosure Continous Duty 115/208-230 Voltage @ 60 Hz 95/174-190 Voltage @ 50 Hz 115/208-230VAC Or 95/174-190VAC Coil Volts Single Phase 3600 Max RPM Max HP @ 1725 RPM 3 Max HP @ 3450 RPM 5 Ambient (C) 40 Degrees 60/50 Hz 1.2/0.6 Amps Holding 10.6/5.3 Inrush Amps 1.4 Service Factor 182/184TC NEMA/IEC Frame

STOCK : available
UOM : EA lead time : 30 days weight : 20.84 kg
