ITEM NO : 2801743

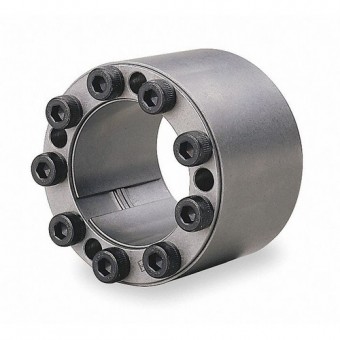

Lock Assy AS 1-15/16 Dia 3.150 OD

TSUBAKI

PART NO : PL1RAD

Power Lock(R) Keyless Bushing Type Multi-Screw Locking Assembly Keyless Bushing Series AS For Shaft Dia - Bushings 1-15/16 In. Outside Dia 3.150 In. Overall Length 2.520 In. Material - Bushings Carbon Steel Transmissible Torque 3057 ft.-lb. Shaft Dia Tolerance -0.0015 In. Outside Dia Tolerance +.0015 In. Transmissible Thrust (Lbs.) 38 163 Hub Contact Pressure (PSI) 14 649 Locking Bolt Quantity 9 Bolt Size M8 X 50 Withstand Temp (Deg. F) -22- 400 Agency Compliance -

STOCK : available
UOM : EA lead time : 30 days weight : 1.41 kg
